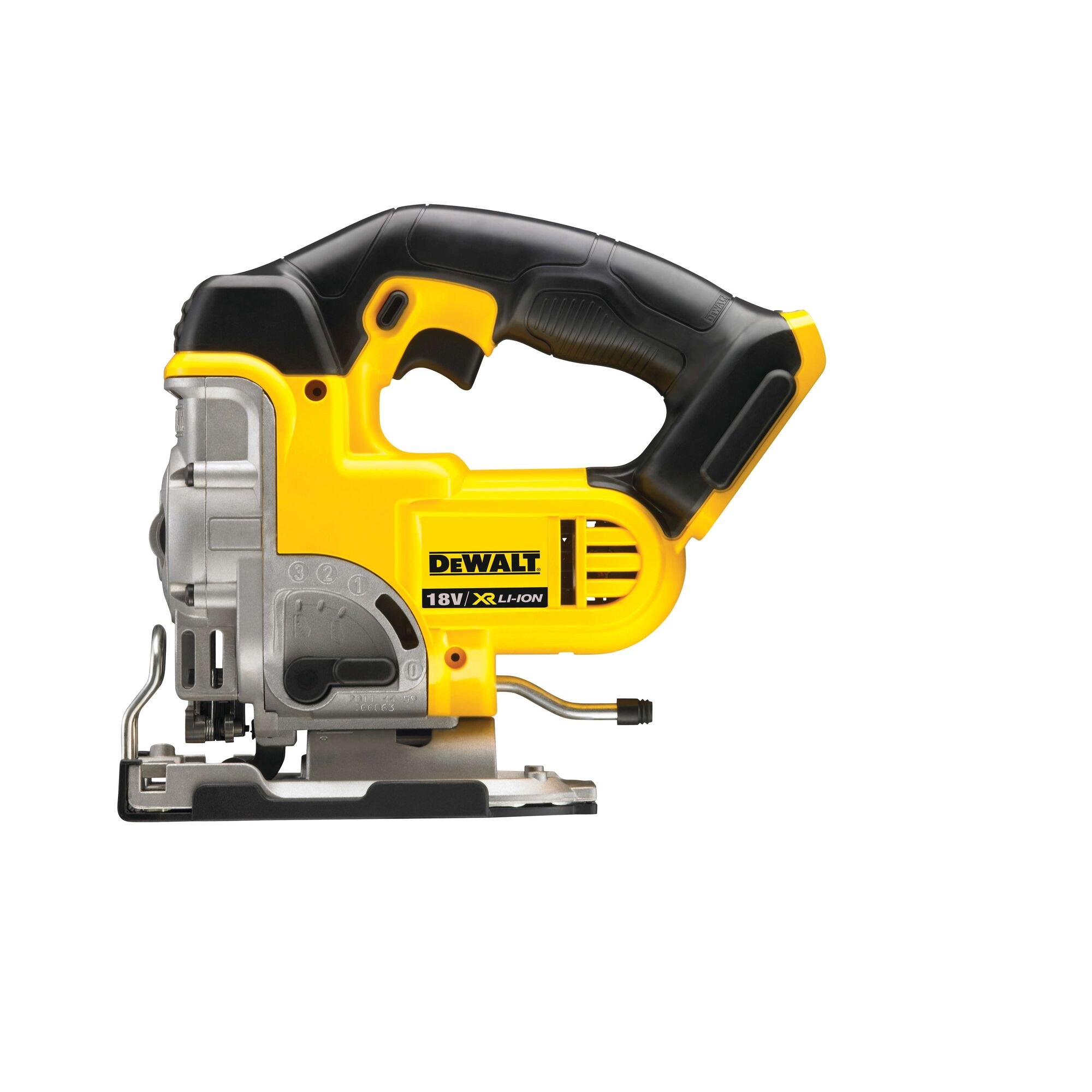

18V XR Jigsaw (Tool Only)
DCS331N-XJ
18V XR Jigsaw (Tool Only)
- ALL-METAL, LEVER-ACTION, KEYLESS BLADE CHANGE: Allows for quick and easy blade changes.
- ALL-METAL, KEYLESS SHOE BEVEL: Versatility for easy bevel cutting with detents at 0°, 15°, 30°, and 45°.
- 4-POSITION PENDULUM ACTION: provides control of cut quality and speed.
Product Overview
This 18V XR Jigsaw has an all metal, lever-action keyless blade clamp designed for quick and easy blade changes and an all-metal keyless shoe bevel with four detents at 0°, 15°, 30°, and 45° to make bevel adjustments easy. The variable-speed trigger provides up to 3,000 strokes per minute to easily adjust speeds during cutting and 4-position orbital action for wood cutting. A removable shoe cover helps protect materials from scratches and the dust blower helps users see where they're cutting. Bare unit, batteries and charger sold separately.
Additional Features
- ADJUSTABLE DUST BLOWER: Keeps line of cut clear of dust and debris.
- QUICK CONTROLLED CUTS AND WORK SAFETY: Provided by Intelligent variable speed trigger and lock off switch.
- REMOVABLE SHOE COVER: Helps protect materials from scratches.
- PART OF THE CORDLESS 18V XR SYSTEM: Fully Compatible With 250+ Solutions.
- 3 YEAR GUARANTEE: Tool covered by extended warranty, subject to registration.
- Tindakan bandul 3 kedudukan mengawal keagresifan atau kelancaran potongan
- Reka bentuk ergonomik yang dipertingkatkan
- Jigsaw premium generasi terkini yang menampilkan Teknologi Lithium Ion XR baharu
- Motor DEWALT PM47 yang bertenaga & sangat cekap dengan berus yang boleh diganti. memberikan tindakan pemotongan pantas sehingga 3000 pukulan seminit memaksimumkan produktiviti pengguna
Includes
- (1) 18V XR Jigsaw
- (1) Anti-Scratch Shoe Cover
- (1) Dust Extraction Port
Specifications
|
Bevel Capacity [deg]
|
45°
|
|
Max. Cutting Capacity (Aluminum) [mm]
|
25
|
|
Max. Cutting Capacity (Steel) [mm]
|
10
|
|
Max. Cutting Capacity (Wood) [mm]
|
135
|
|
No Load Speed [RPM]
|
0-3000
|
|
No Load Stroke Rate
|
0-3000
|
|
Power Output [W]
|
400
|
|
Product Height [mm]
|
305
|
|
Product Length [mm]
|
215
|
|
Product Pack Quantity
|
1
|
|
Product Weight [Kg]
|
2.3
|
|
Sound Power [dB(A)]
|
100
|
|
Sound Power Uncertainty [dB(A)]
|
3
|
|
Sound Pressure [dB(A)]
|
92
|
|
Sound Pressure Uncertainty [dB(A)]
|
3
|
|
Stroke Length [mm]
|
26
|
|
Uncertainty K1 (Vibration)
|
3
|
|
Uncertainty K2 (Vibration)
|
1.5
|
|
Uncertainty K3 (Vibration)
|
1.5
|
|
Uncertainty K4 (Vibration)
|
1.5
|
|
Uncertainty K (Vibration) (Cutting Board) [m/s²]
|
1.5
|
|
Uncertainty K (Vibration) (Cutting Sheet Metal) [m/s²]
|
1.5
|
|
Vibration Emission Value (Cutting Board) [m/s²]
|
10.5
|
|
Vibration Emission Value (Cutting Sheet Metal) [m/s²]
|
5.5
|
