54V XR FLEXVOLT 165mm Plunge Saw (Tool Only)
DCS520NT-XJ
54V XR FLEXVOLT 165mm Plunge Saw (Tool Only)
- 54V XR BRUSHLESS MOTOR: Increased power and runtime.
- CUTTING ACCURACY AND FINISH QUALITY: For woodworking as well as performance for general construction jobs thanks to plunge system.
- PRECISE STRAIGHT CUTS: Always cuts along the cutting line with guide rails provided with 1 m, 1.5m and 2.6m length.
Product Overview

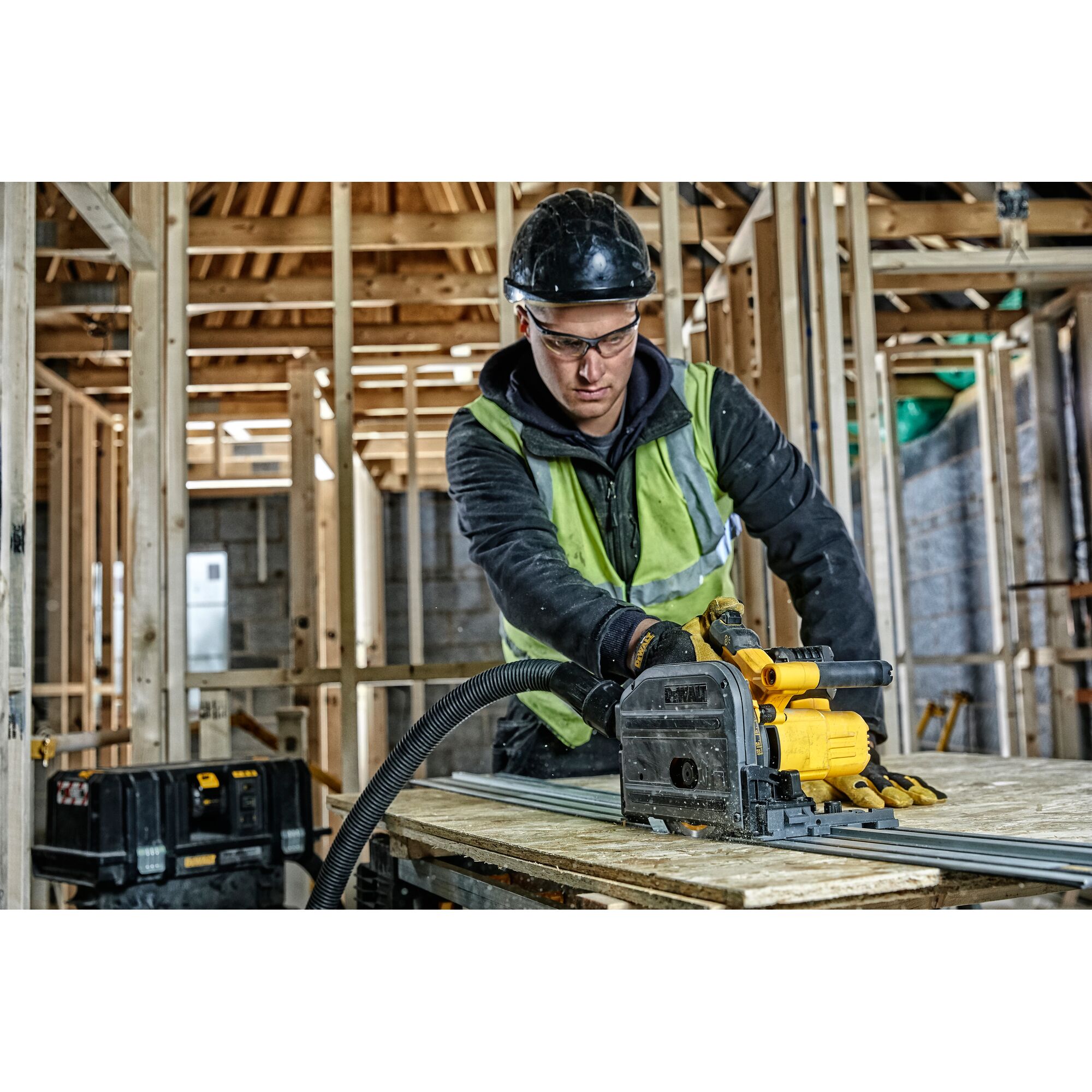

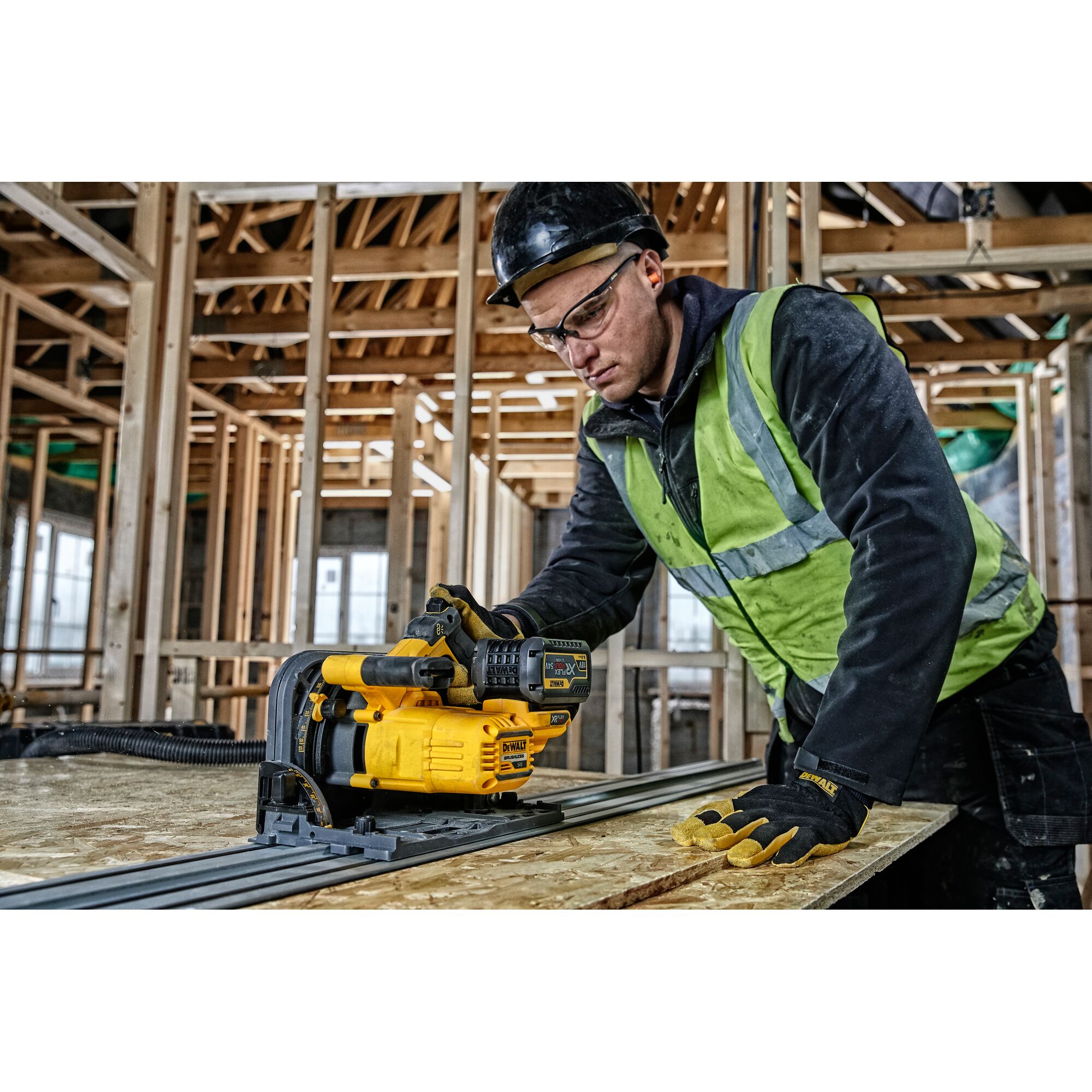

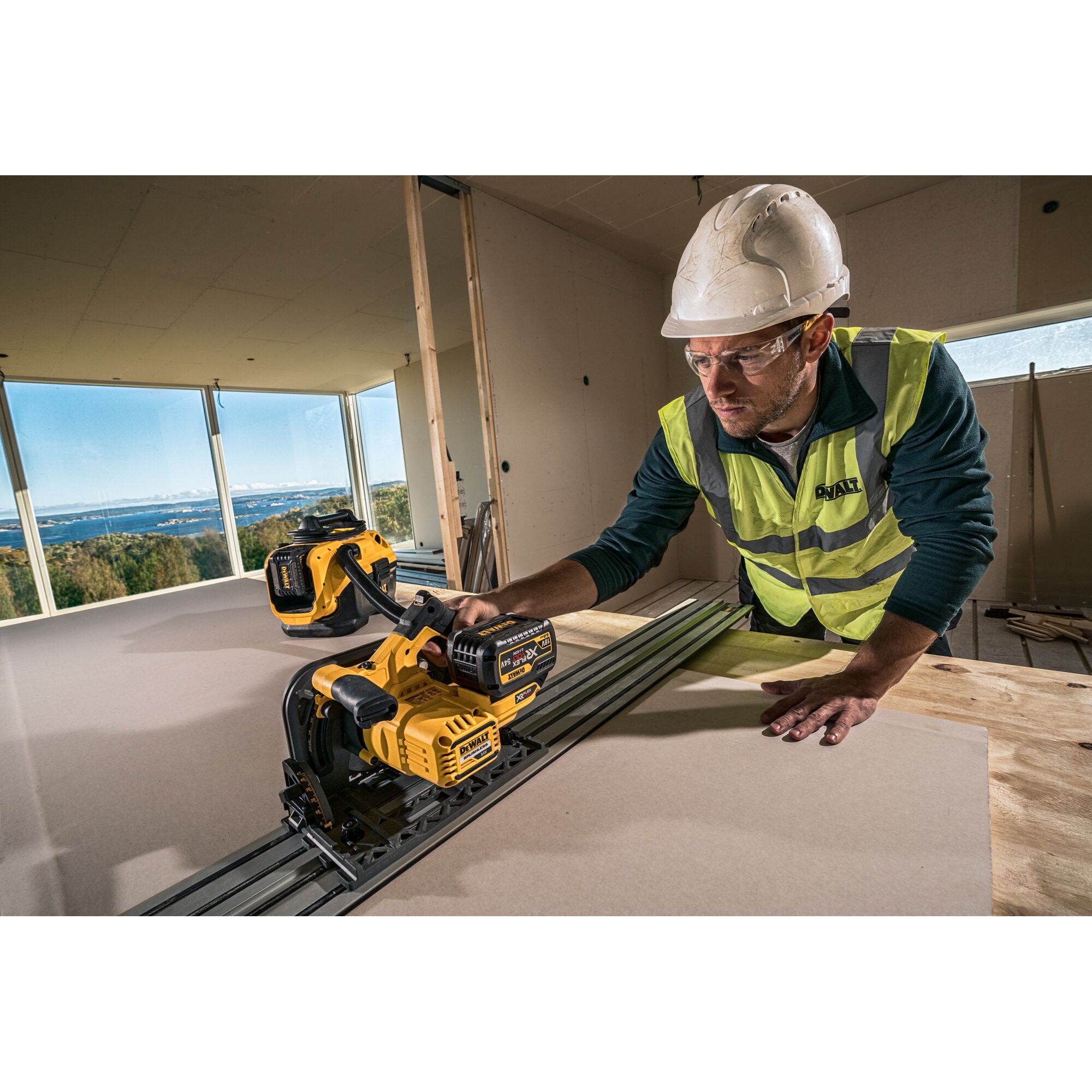

The high powered DEWALT cordless solution for professionals working on trimming, plunge cutting, and sheet cutting applications. The XR FLEXVOLT® plunge saw features a 42-tooth blade, an anti-kickback function and track compatibility to deliver quick, smooth cuts. Now features Wireless Tool Control to enable cord free power take off with a compatible DEWALT Extractor such as DCV586M. Bare unit, batteries and charger sold separately.
Additional Features
- IMPROVED SAFETY: The anti kickback function stops the saw from moving backwards along the rail and helps stop the saw from climbing out of the work piece when making plunge cuts.
- ERGONOMIC USAGE: Parallel plunge allows the user to maintain a smooth and constant hand position while cutting.

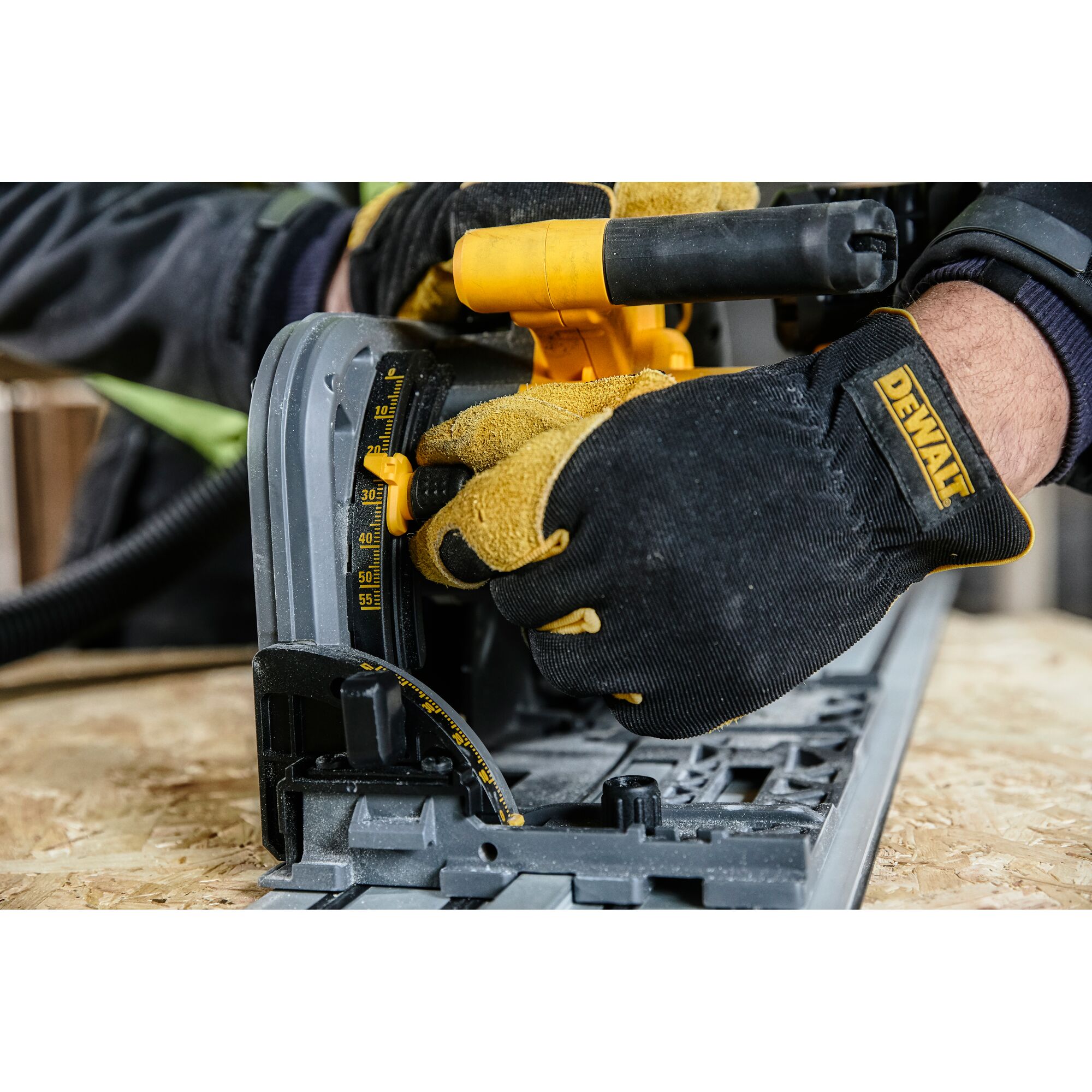

- SMOOTH CUTTING: Rail adjustment allows the saw to be adjusted accurately to the guide rail.
- CORD FREE CONNECTIVITY: WTC (Wireless Tool Control) allows cordless connection to actuate a WTC equipped DEWALT Dust Extractor.

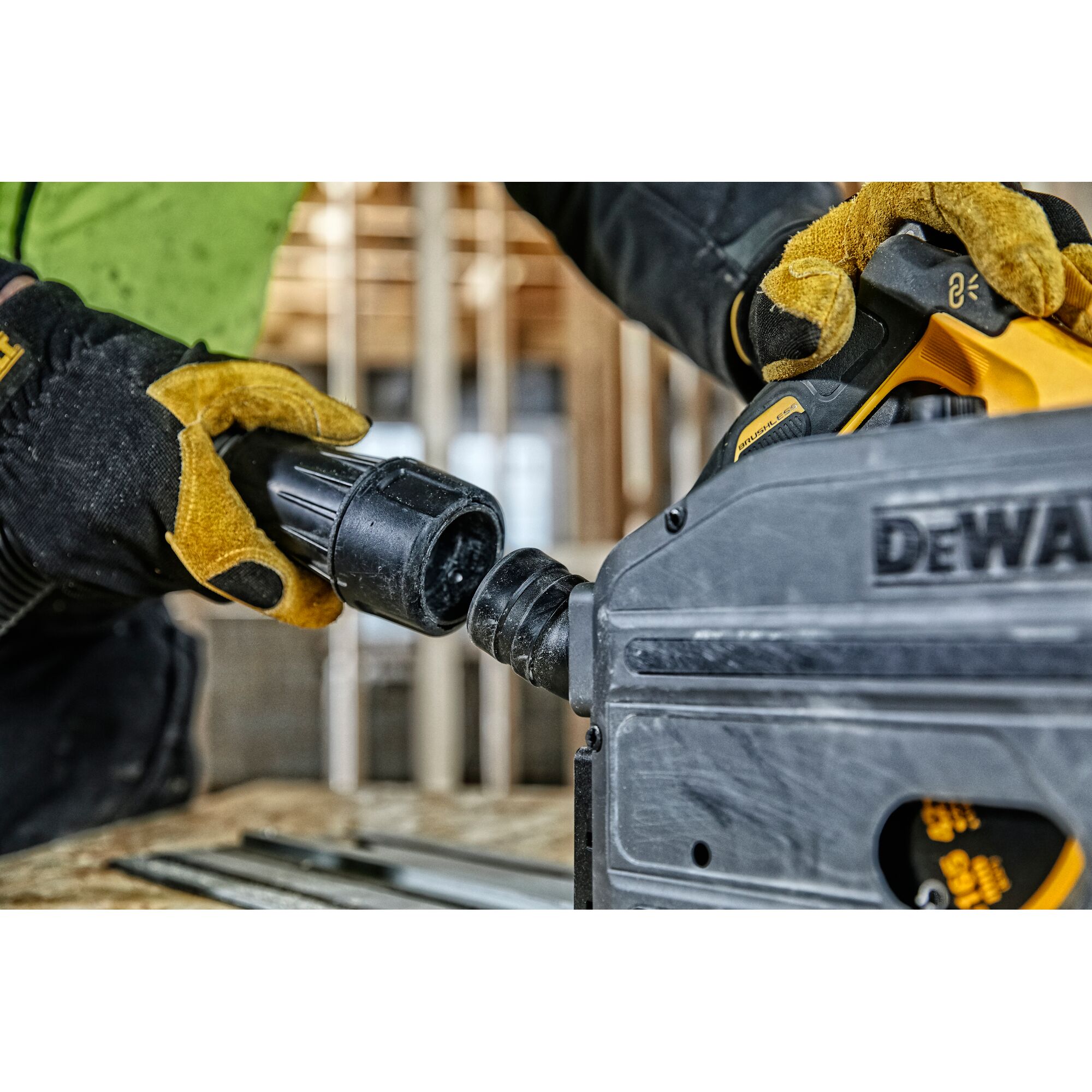

- DIRECT COMPATIBILITY WITH AIRLOCK SYSTEM: Ensuring easy and secure connection with DEWALT dust extractors for high dust-extraction efficiency and increased user health protection.
- 3 YEAR GUARANTEE: Tool covered by extended warranty, subject to registration.
- PART OF THE CORDLESS 54V XR FLEXVOLT SYSTEM: Power Of Corded. Freedom Of Cordless.
- Includes heavy-duty TSTAK kit box allowing different combinations with other TSTAK storage units.
- Pelarasan rel membolehkan gergaji dilaraskan dengan tepat pada rel
- Elektronik gelombang penuh mengekalkan kelajuan malar di bawah beban berat
Includes
- (1) 54V XR FLEXVOLT 165mm Plunge Saw
- (1) 165mm 42-Tooth TCT Saw Blade
- (1) Blade Wrench
- (1) Dust Extraction Port
- (1) TSTAK VI Heavy-Duty Kit box
Specifications
|
Battery Capacity [Ah]
|
6
|
|
Bevel Capacity [deg]
|
47°
|
|
Blade Bore [mm]
|
20
|
|
Blade Diameter [mm]
|
165
|
|
Hand / Arm Vibration
|
<2.5 m/s2
|
|
Max. Depth of Cut at 45° [mm]
|
44
|
|
Max. Depth of Cut at 45° (with rail) [mm]
|
40
|
|
Max. Depth of Cut at 90° [mm]
|
59
|
|
Max. Depth of Cut at 90° (with rail) [mm]
|
55
|
|
No Load Speed [RPM]
|
2500-4200
|
|
Power Output [W]
|
1450
|
|
Product Height [mm]
|
265
|
|
Product Length [mm]
|
303
|
|
Product Weight [Kg]
|
4.7
|
|
Sound Power [dB(A)]
|
104
|
|
Sound Power Uncertainty [dB(A)]
|
3
|
|
Sound Pressure [dB(A)]
|
96
|
|
Sound Pressure Uncertainty [dB(A)]
|
3
|
|
Uncertainty K1 (Vibration)
|
1.5
|
|
Uncertainty K (Vibration) [m/s²]
|
1.5
|
